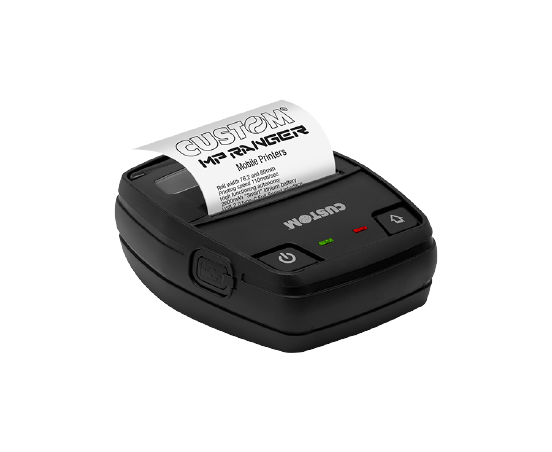

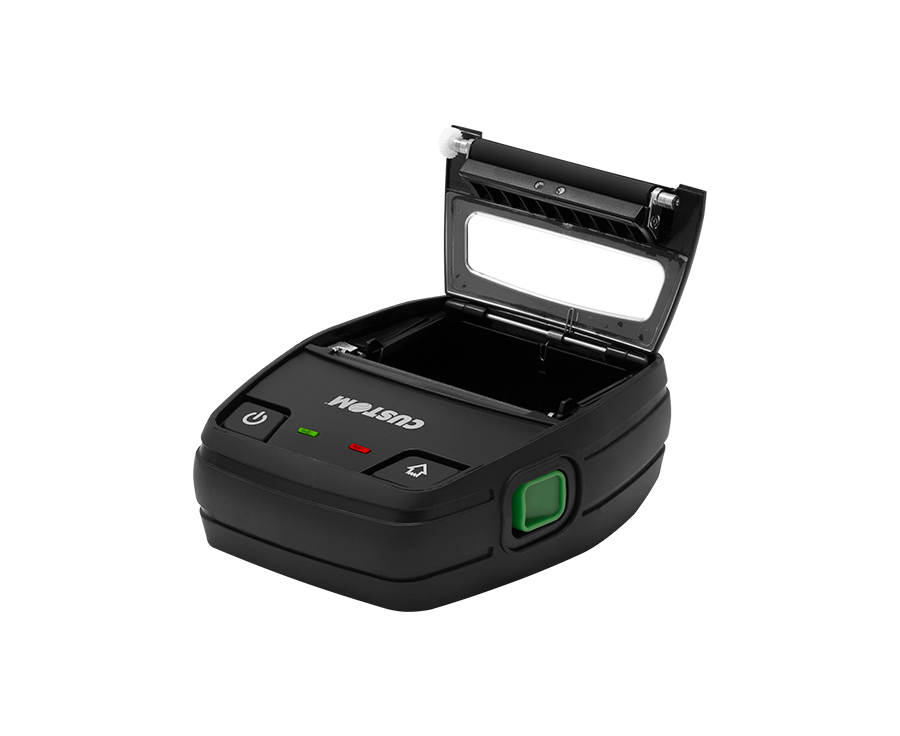

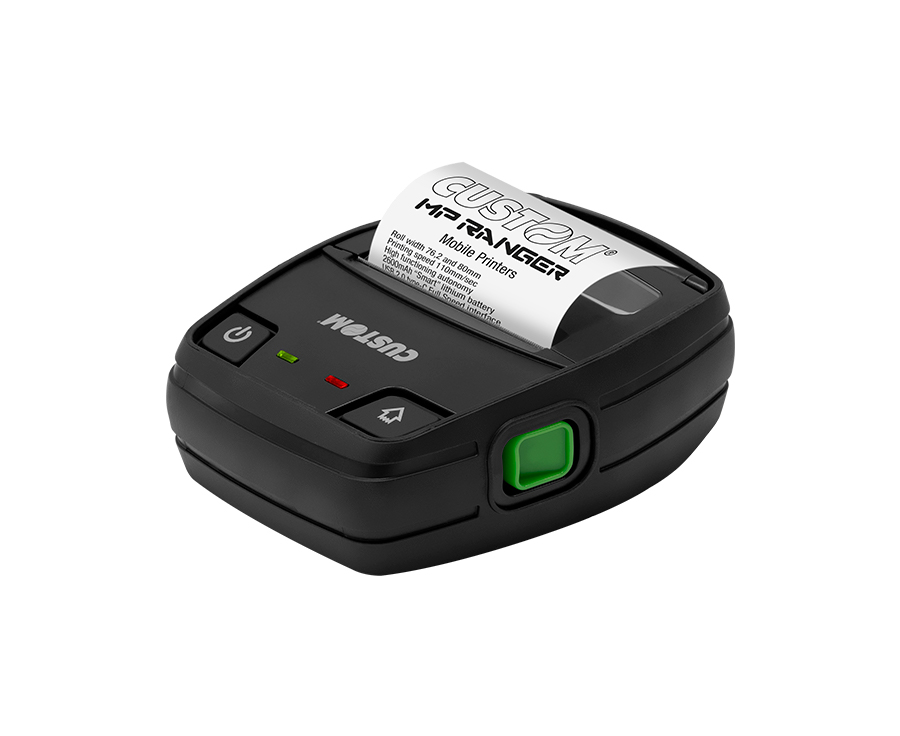

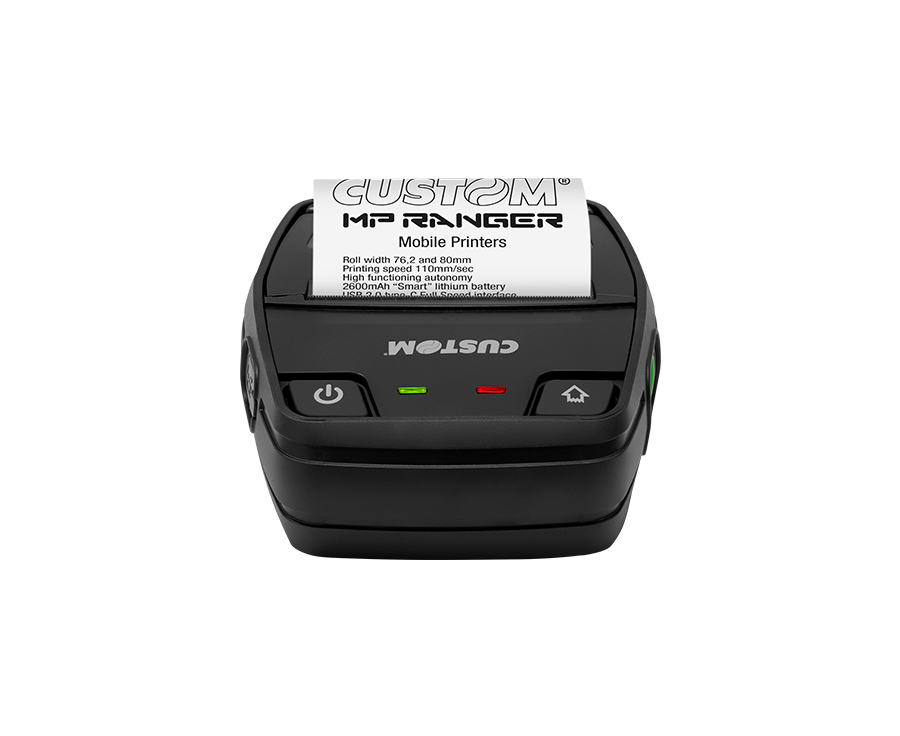

MP RANGER

Mobile printer for mobile receipt / label issuance for logistics and delivery


MP Ranger is a latest generation mobile printer and represents the evolution of Custom's range of mobile printers. It can print on thermal paper in roll format, either on plain paper or peel-off format labels. Complete with sensors for displaying status and battery level, it allows the printing of 1D and 2D barcodes (QRCODE). It can handle rolls with paper width of 76.2 mm or 80 mm using the special reducer included in the package, and is designed to be used in outdoor working contexts, thanks to the IP54 protection to resist splashing of liquids and dust for use in adverse weather conditions and resistance to falls from 1 meter. The operational equipment is completed by a clip for belt fastening and as an accessory the practical case with shoulder strap is available for greater protection and the cradles, with 1 or 5 positions for practical charging. The printer is equipped with different charging options, from simple connection via USB Type-C to positioning on single or multi-position charging cradles up to five units. MP Ranger can be connected to any mobile device, from simple phones, to specialized terminals, to handheld mobile computers and tablets with Bluetooth and Wi-Fi functionality thanks to the Wireless technology.




TECHNICAL SHEET



MP RANGER

Printing Method:

Thermal printing

Number of dots:

8 dots / mm

Resolution:

203 dpi

Printing speed (mm/sec):

110 mm/sec

Character set:

PC437, PC850, PC860, PC863, PC865, PC866, PC858 (euro), Cinese esteso GB 18030-2000, Koreano PC949

Supported Barcode:

Codabar, Code 32, Code 39, Code 93, Code 128, EAN-8, EAN-13, GS1 dataBar Stacked, GS1 dataBar Stacked Omnidirectional, GS1 DataBar Expanded Stacked, ITF, UPC-A, UPC-E, Aztec, Aztec Rune, Data Matrix, PDF417, QRcode, Micro QRCode

Printing Format:

Height/width from 1 to 8, negative, underlined, italic, expanded

Printing Direction:

Normal, 90°, 180°, 270°

Roll width:

76,2mm and 80mm

Paper weight:

from 55 to 100 g/m²

Paper thickness:

from 61 to 100 μm

Printing width:

72 mm

Roll Dimension:

max 40mm

Interfaces:

USB type-C 2.0 Full Speed Wifi 802.11 b/g/n Bluetooth 4.2 BLE

Tool software:

PrinterSet

Flash Memory:

2 MB + 8 MB flsh SPI

RAM Memory:

640 Kb + 8 MB SDRAM

Graphic Memory:

3 MB for logos (maximum width 576 dot) + 5 MB per font

Driver:

Windows 7, 8, 8.1, 10 (32/64 bit)

Power supply:

USB standard port from PC 5 V, 0.5 A (Slow charge)

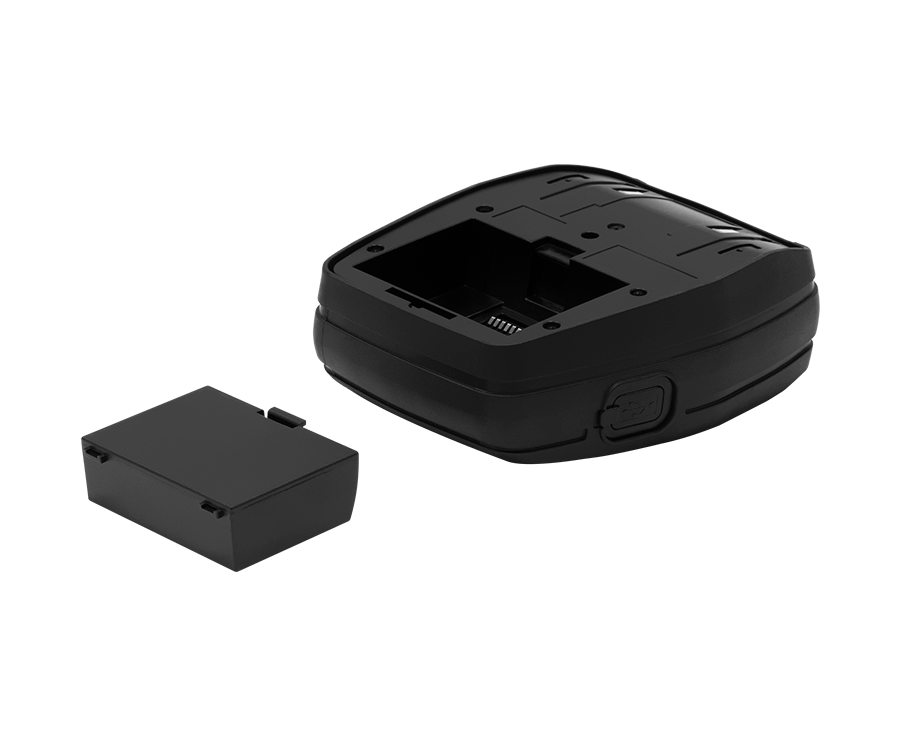

Battery pack:

Li-ion 7.2 V 2.6 Ah 18.72 Wh

Sensors:

Presence of paper, presence of alignment notch, head temperature, open cover, NFC

Operating temperature:

-10°C + 50°C

Dimensions:

149(L) x 53(H) x 122(P) mm

Weight:

475gr (battery included)

Warranty:

24 months
